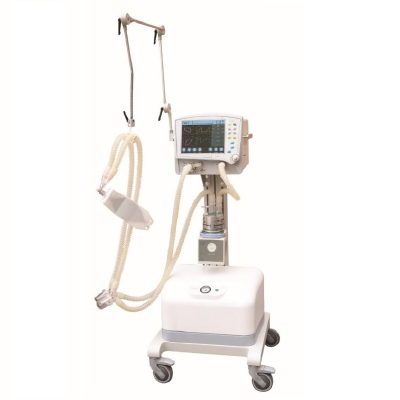

ICU Ventilator SH300
Features
· 10.4" TFT color screen
· Easy setting by navigator wheel knob and touch key
· Wide choice of ventilation modes including CPAP, APRV, BIPAP
· Flow and pressure trigger
· Static compliance and resistance monitor
· PEEP, P-V loop, V-F loop
· Three-level visual and audible alarm, with concise words describing problems
· Advanced built-in electronic air-oxygen mixing device
· Durable and accurate built-in flow sensor
· Integrated expiration valve, easy to be sterilized
· Backup apnea ventilation
· Auto nebulizer
· Built-in battery
· CE certified
Electrical | Power supply | AC100~240V, 50/60Hz, DC12V, 4.4Ah |
Battery | 4 hours discharging | |
Power consumption | 65VA | |
Ventilation | Driven Mode | Pneumatic-driven, electronic-controlled |
Ventilation Mode | VCV, PCV, SIMV-V, SIMV-P, PSV, SPONT, CPAP, APRV, BIPAP (option) | |
Tidal Volume | 50 - 1500 ml | |
Frequency | 1 - 100 bpm, 1 - 40 bpm (SIMV) | |
Tinsp | 0.1 - 12s | |
Tpause | 0 - 4.8s | |
Pressure triger sensitivity | -20 - 0 cmH2O | |
Flow triger sensitivity | 1 - 20 LPM | |
PSV | 0 - 70 cmH2O | |
Phigh | 1-80cmH2O | |
Plow | 0-79cmH2O | |
Waveform | P-T, F-t, V-t | |
Loops | P-V, V-F | |
PEEP / CPAP | 0-50cmH2O | |
FiO2 | 21% - 100% | |
Psupport | 0 - 70 cmH2O | |
Pinsp | 5 - 70 cmH2O | |
Thigh | 0.1 - 30s | |
Tlow | 0.5-30s | |
Alarm Silence | 120s | |
Parameter Monitored | Vti, Vte, MV, MVspn, f, fspn, FiO2, Ppeak, Pmean, Pplate, PEEP, Pmin, Compliance, Resistance | |
Interface | RS232, VGA | |
I:E Ratio | 1:10 - 10:1 | |
Electronic (Optional) | Off, 3 - 39 cmH2) | |
FiO2 (optional) | 21% - 100% | |
Alarms | 3 level visible audible alarm Tidal volume, Munite volume, Frequency, Airway pressure, Continuous positive pressure, Apnea, FiO2,Battery low and Battery exhausted. | |
General | Screen | 12'' TFT Color Touch Screen |
Dimension | 400 x 303 x 250 mm (main unit) | |
Net weight | 16 kg (main unit) |
