Aeonmaed VG70 hospital breathing machine Ventilator  CE certificate

Aeonmaed VG70 hospital breathing machine Ventilator CE certificate

  • FOB Price:US $50,000 -57,200 / Unit (Only for reference) | Get Latest Price
  • Min.Order Quantity: 10 Units
  • Supply Ability: 100 Units per Week
  • Port: China port
  • Payment Terms: T/T,Western Union,Other
Get Latest Price:
  • *Quantity: Unit/Units
| Factory
Experience:2010-01-15
Buyer Protection

- Guaranteed Secure Payments on Every Order

- Refund if your item is not delivered or as described

- Buyer Protection after order confirmation

Latest Browsing
Product Details
  • Place of Origin:  Beijing
  • Brand Name:  Hongyu
  • Model Number:  VG70

Product Description

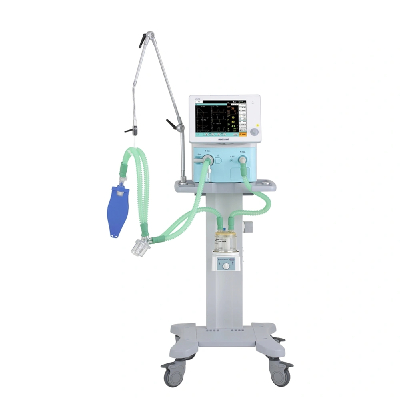

 VG70  Ventilator
Superior Mobile ICU ventilator
• Comprehensive ICU ventilator including BIVENT and PRVC
• Compact, big capacity battery, no air compressor, intra-hospital mobility
• Flexible device configuration: equipped on a trolley, bed or ceiling pendant
Cost Effective Solution
• Unique metal-based, autoclavable, heated exhalation valve
• Built-in flow sensor, non-consumable design
• Upgradeable ventilation system software, with an available USB port



An Optimal Combination of Invasive and Noninvasive Ventilator
As noninvasive ventilation is used increasingly in a wide range of clinical situations, we offer a dual solution. VG70 combines the advantages of a flexible noninvasive ventilator with a full-featured invasive ventilator for the ICU.

Ventilation Settings


Ventilation Modes

• VCV (A/C), PCV (A/C), PRVC (optional), PSV (optional), STANDBY • SIMV (VCV) PSV, SIMV (PCV) PSV, SIMV (PRVC) PSV
• SPONT/CPAP PSV
• BIVENT/APRV PSV (optional)
• NIV/CPAP, NIV-T, NIV-S/T

Enhancements

• Apnea ventilation, Pressure and Flow trigger, Automatic Tube Compensation (ATC), Smart suction • Manual breath, Insp/Exphold, Screen freeze, Nebulization, Lung recruitment

Parameters


Tidal volume (VT)

20-2000ml

Respiratory rate (RR)

1 to 80 bpm

Inspiratory time (Ti)

0.2 to 9 s (adult), 0.2 to 5 s (pediatric)

Inspiratory flow (Flow)

0 to 100 L/min (pediatric), 0 to 180L/min (adult)

Inspiratory pressure(Pinsp)

5 to 70 mbar (or cmH2O)

Inspiratory pressure limit(Pmax)

80 mbar (or cmH2O)

PEEP

0 to 35 mbar (or cmH2O)

Tslope

0 to 2 s

O2 concentration(FiO2)

21 to 100 Vol%

Trigger sensitivity

0.5 to 20 L/min (Flow trigger),
-20 to 0 mbar (or cmH2O) (Pressure trigger)

I/E ratio

1/10 to 4/1

Apnea alarm time

10-60 seconds

Monitoring

• Inspiratory O2 concentration (FiO2), End-expiratory CO2 concentration (etCO2)
• Compliance (dynamic & static), Resistance (R), MVleak, RSBI, WOB, I:E, Vdaw, PEEPi • Pressure-Volume loop, Pressure-Flow loop, Flow-Volume loop

Alarms

Expiratory minute volume (MV) High/Low, Airway pressure (Paw) High/Low,
VTe Low, PEEP High/Low, Insp. O2 concentration (FiO2) High/Low,
End-expiratory CO2 concentration (etCO2) High/Low, fspont High, Apnea alarm, Disconnection, Flow sensor error, Gas supply, Electrical supply & battery failure,
Exhalation obstruction, Apnea backup for low frequency alarm

Dimensions (WxDxH)

375mm x 395mm x 430mm

Weight

17kg (37.5lbs)

Screen

12.1" TFT color touch screen


  • Place of Origin:  Beijing
  • Brand Name:  Hongyu
  • Model Number:  VG70

Ventilation Settings


Ventilation Modes

• VCV (A/C), PCV (A/C), PRVC (optional), PSV (optional), STANDBY • SIMV (VCV) PSV, SIMV (PCV) PSV, SIMV (PRVC) PSV
• SPONT/CPAP PSV
• BIVENT/APRV PSV (optional)
• NIV/CPAP, NIV-T, NIV-S/T

Enhancements

• Apnea ventilation, Pressure and Flow trigger, Automatic Tube Compensation (ATC), Smart suction • Manual breath, Insp/Exphold, Screen freeze, Nebulization, Lung recruitment

Parameters


Tidal volume (VT)

20-2000ml

Respiratory rate (RR)

1 to 80 bpm

Inspiratory time (Ti)

0.2 to 9 s (adult), 0.2 to 5 s (pediatric)

Inspiratory flow (Flow)

0 to 100 L/min (pediatric), 0 to 180L/min (adult)

Inspiratory pressure(Pinsp)

5 to 70 mbar (or cmH2O)

Inspiratory pressure limit(Pmax)

80 mbar (or cmH2O)

PEEP

0 to 35 mbar (or cmH2O)

Tslope

0 to 2 s

O2 concentration(FiO2)

21 to 100 Vol%

Trigger sensitivity

0.5 to 20 L/min (Flow trigger),
-20 to 0 mbar (or cmH2O) (Pressure trigger)

I/E ratio

1/10 to 4/1

Apnea alarm time

10-60 seconds

Monitoring

• Inspiratory O2 concentration (FiO2), End-expiratory CO2 concentration (etCO2)
• Compliance (dynamic & static), Resistance (R), MVleak, RSBI, WOB, I:E, Vdaw, PEEPi • Pressure-Volume loop, Pressure-Flow loop, Flow-Volume loop

Alarms

Expiratory minute volume (MV) High/Low, Airway pressure (Paw) High/Low,
VTe Low, PEEP High/Low, Insp. O2 concentration (FiO2) High/Low,
End-expiratory CO2 concentration (etCO2) High/Low, fspont High, Apnea alarm, Disconnection, Flow sensor error, Gas supply, Electrical supply & battery failure,
Exhalation obstruction, Apnea backup for low frequency alarm

Dimensions (WxDxH)

375mm x 395mm x 430mm

Weight

17kg (37.5lbs)

Screen

12.1" TFT color touch screen
