- Place of Origin: Beijing
- Brand Name: Hongyu
- Model Number: 510S
Product Description

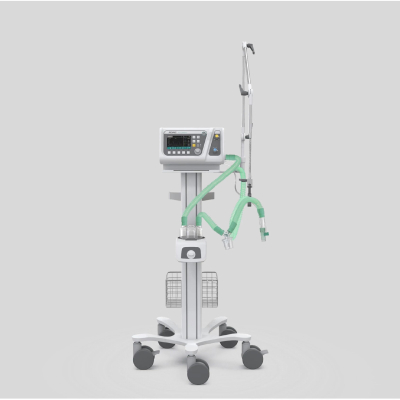

Classical emergency transport ventilator
Pneumatically driven pneumatically controlled
A/C mode with pressure trigger
High/low pressure alarm
Oxygen concentration adjustable
Adult/pediatric parameter in different color, easy to operate Simple hose connecting, time saving
Compact and portable design
Used in emergency department, emergency station, country hospital, clinic and patients’ inter-departmental transfer
Specification | |
Ventilation Mode | Assist/Control (A/C) Manual |
Parameter | MV: Respiratory rate:10~60bpm |
Monitoring | Pressure values: Paw |
Alarm | Paw high, O2 supply down |
Technical Data | |
Gas supply | O2, 0.28~0.6MPa |
Maximum security pressure | 8kPa |
Compliance | 4mL/100Pa |
Noise | ≤65dB(A) |
Dimensions (H×W×D) | 276×110×142mm |
Weight | 2.4kg |
Environment Requirement | |
Temperature | -18°C~50°C (Operation) |
Relative humidity: | 5%~95%, non-condensing (Operation) ≤93% (Storage) |
Atmospheric pressure | 70~110kPa (Operation) |
